| Present Location |
Bluebell |
| Designed For |
SR |
| Type & Original Water Capacity (gallons) |
Maunsell 3500 gallon |
| Original Coal Capacity (tons) |
5 |
| Chassis Type |
Maunsell Ashford 3 axle |
| Wheelbase |
6ft 6in + 6ft 6in |
| Gauge |
4ft 8 1/2in |
| Current Water Capacity (gallons) |
3500 |
| Current Coal Capacity (tons) |
5 |
| Scoop Fitted |
Unspecified |
| Allocated To |
541 (30541) SR Q class 0-6-0 |
| Present Number |
3063 |
| Owner |
Maunsell Locomotive Society |
| Status |
Under Restoration / Overhaul |
| Locomotives Used with this Tender |
June 1964 Arrived at Woodham Bros, Barry attached to 31625 SR U class 2-6-0 vvv vvv May 1974 Sold with 30541 SR Q class 0-6-0 vvv vvv Believed to have only been coupled to 30541 since preservation |
| Additional Notes |
Locomotive is is under overhaul at Leaky Finders in Devon, the tender is under overhaul at the Bluebell Railway. Old tank removed late 2023 and tender will be fitted with a new tank. The new tank is being built at the Kent and East Sussex Railway and Steam Railway magazine no 559 June/July 2024 reported that all steel plate for it had been purchased and the well tank had been fabricated. The overhaul is expected to be completed by late 2025/early 2026. |

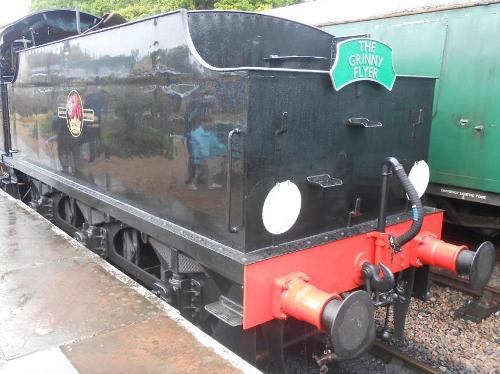

| Main Photo Taken By |
Quentin Edwards |
| Date of Image |
29/05/2015 |
| Record Last Updated |
14/07/2024 |
