| Present Location |
Swanage |
| Designed For |
SR |
| Type & Original Water Capacity (gallons) |
Bulleid 5500 gallon |
| Original Coal Capacity (tons) |
5 |
| Year Entered Service |
2017 |
| Chassis Build Year |
2014 |
| Chassis Type |
Bulleid Standard Frame 3 axle |
| Wheelbase |
6ft 6in + 6ft 6in |
| Gauge |
4ft 8½in |
| Tank Fitted Date |
2014 |
| Current Water Capacity (gallons) |
5500 |
| Current Coal Capacity (tons) |
5 |
| Scoop Fitted |
Never Fitted |
| Allocated To |
34072 SR Battle of Britain class 4-6-2 |
| Present Number |
003 |
| Owner |
Southern Locomotives Ltd |
| Status |
Operational |
| Locomotives Used with this Tender |
November 2015- August 2017 Tender completed and stored awaiting completion of overhaul of 34072 SR Battle of Britain 4-6-2
August 2017 - Nov/Dec 2018 34072 SR Battle of Britain class 4-6-2
Nov/Dec 2018 - May/June 2019 Spare (34072 ran with 3363 Bulleid 5500 gallon)
May/June 2019 - 2/8/2023 34072 SR Battle of Britain class 4-6-2
3/8/2023 - at least 2/9/2023 (may be later) Spare (34072 ran with Bulleid 5500 gallon tender no.3305)
By 14/10/2023 - to date 34072 SR Battle of Britain class 4-6-2 |
| Additional Notes |
New build tender. The chassis was built by Southern Locomotives Ltd between 2013 and 2014. The tank was constructed by Adam Dalgleish Engineering of Stockton on Tees and has cut down raves. The number 003 is that allocated to it by Southern Locomotives Ltd. Built for use with 34072 SR Battle of Britain class 4-6-2, it was first coupled to 34072 in August 2017. |

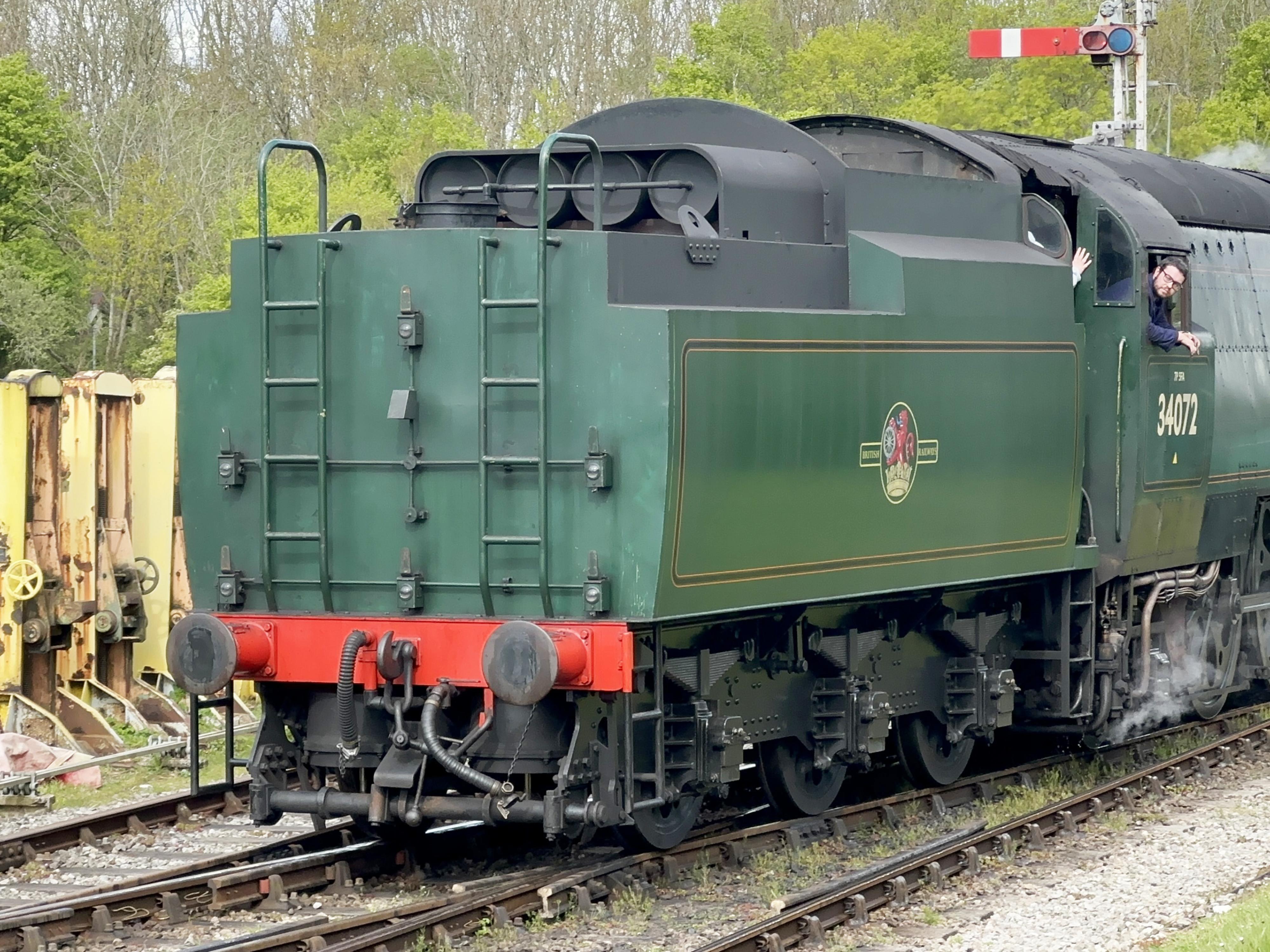

| Main Photo Taken By |
Ben Scott |
| Date of Image |
13/04/2026 |
| Record Last Updated |
22/05/2026 |
