| Present Location |
East Lancashire |
| Designed For |
SJ Sweden |
| Type & Original Water Capacity (gallons) |
A Class 4400 gallon |
| Original Coal Capacity (tons) |
5.9 |
| Chassis Type |
4 axle bogie |
| Wheelbase |
5ft 11in + 5ft 11in + 5ft 11in |
| Gauge |
4ft 8½in |
| Current Water Capacity (gallons) |
4400 |
| Scoop Fitted |
Never Fitted |
| Allocated To |
1313 SJ B class 4-6-0 |
| Present Number |
Unknown |
| Status |
Awaiting Restoration / Overhaul |
| Additional Notes |
Imported from Sweden in 1981. Tank has not been replaced since preservation. However about 18 inches in height was removed from the top of the coal bunker while the loco was based at the Boness & Kinneil Railway to make coaling by hand easier. It is not known how much this has reduced the coal capacity by
Metric coal capacity is 6 tonnes. Water capacity 20000 litres. Metric wheelbase is 180cm + 180cm + 180cm |

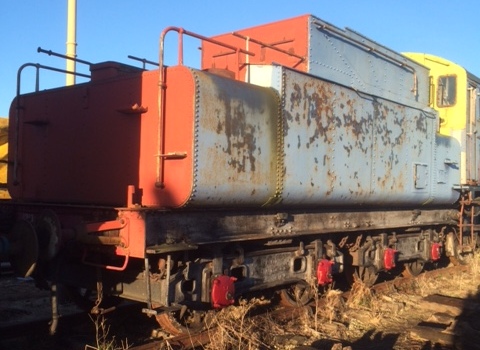

| Main Photo Taken By |
Justin Edwards |
| Date of Image |
27/08/2023 |
| Record Last Updated |
28/08/2026 |
