| Present Location |
Great Central |
| Designed For |
BR |
| Type & Original Water Capacity (gallons) |
BR3 3000 gallon/Ivatt hybrid |
| Original Coal Capacity (tons) |
3000 |
| Chassis Build Year |
1948 |
| Chassis Type |
Ivatt LMS 3 axle |
| Wheelbase |
6ft 6in + 6ft 6in |
| Gauge |
4ft 8½in |
| Tank Fitted Date |
circa 1992 |
| Current Water Capacity (gallons) |
3000 |
| Current Coal Capacity (tons) |
4 |
| Scoop Fitted |
No |
| Allocated To |
78018 BR 2MT 2-6-0 |
| First Number |
See Notes |
| Present Number |
1092 |
| Owner |
Darlington Railway Preservation Society |
| Status |
Under Restoration / Overhaul |
| Locomotives Used with this Tender |
September 1967 arrived at Woodham Bros, Barry with 46428 LMS Ivatt class 2 2-6-0
November 1978 Left Woodham Bros, Barry with 78018 BR Std 2 2-6-0
August 2016 - Late April/Early May 2018 Spare (78018 ran with BR3 3000 gallon no. 1093 as restoration of the BR3/Ivatt hybrid was not completed)
Late April/early May 2018 - to date 78018 BR Std 2 2-6-0 (operational and non operational) |
| Additional Notes |
Chassis is from an Ivatt 3000 gallon tender. This arrived at Woodham Bros, Barry behind LMS Ivatt 2MT number 46428. The last tender shown as allocated to this loco by BR records is LMS number 7028. After purchase for use with 78018 the Ivatt tank was removed and a new tank, built to the BR3 pattern but of welded construction with dummy rivets, was fitted circa 1992. The Ivatt tenders had plain axle bearings while the BR3 was fitted with roller bearings. This tender retains plain bearings though the axlebox covers have been changed to give the appearance of roller bearing axleboxes. The tender carries the number 1092 which was the number of the BR3 tender that was first coupled to 78018 when built.The number plate was not fitted until Summer 2020. |

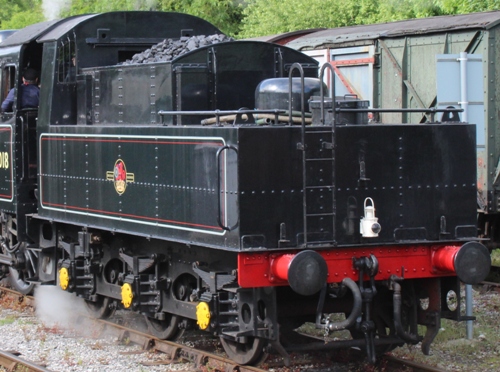

| Main Photo Taken By |
Stephen Godber |
| Date of Image |
21/06/2015 |
| Record Last Updated |
11/06/2026 |
