| Present Location |
Boness |
| Designed For |
LMS |
| Type & Original Water Capacity (gallons) |
Stanier 4000 gallon Mk 1 (riveted) |
| Original Coal Capacity (tons) |
9 |
| Chassis Type |
Stanier Standard Wheelbase 3 axle |
| Wheelbase |
7ft 6in + 7ft 6in |
| Gauge |
4ft 8½in |
| Current Water Capacity (gallons) |
4000 |
| Current Coal Capacity (tons) |
9 |
| Scoop Fitted |
Unspecified |
| Allocated To |
45170 TCDD 'Churchill' class (LMS 8F class) 2-8-0 |
| Present Number |
Unknown |
| Owner |
Scottish Railway Preservation Society |
| Status |
Under Restoration / Overhaul |
| Additional Notes |

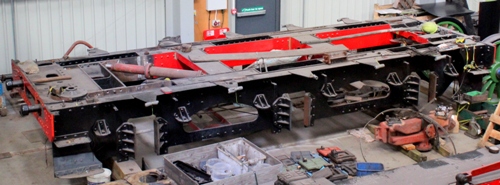

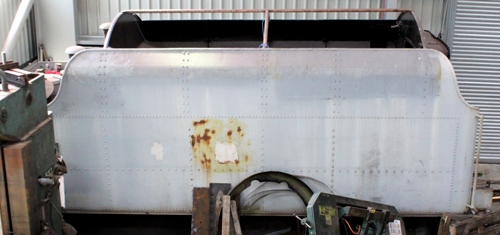

One of a batch built for the WD but diverted to Turkey. Reimported to the UK in 2010. This tender was never fitted with a water scoop and does not have the dome at the rear of the tender that would have housed the top of the scoop inlet pipe. Restoration has started and by mid 2023 the tank and chassis had been separated. |
| Main Photo Taken By |
Mike Haddon |
| Date of Image |
20/06/2012 |
| Record Last Updated |
22/07/2023 |
