| Present Location |
Great Central |
| Designed For |
ROD (GCR Design) |
| Type & Original Water Capacity (gallons) |
Robinson 4000 gallon |
| Original Coal Capacity (tons) |
6 |
| Chassis Type |
Robinson 3 axle |
| Wheelbase |
6ft 6in + 6ft 6in |
| Gauge |
4ft 8½in |
| Scoop Fitted |
No |
| Allocated To |
567 GCR class 2 LNER class D7 4-4-0 |
| Present Number |
Unknown |
| Owner |
GCR 567 Locomotive Group |
| Status |
Under Restoration / Overhaul |
| Additional Notes |
Purchased by the GCR 567 Locomotive Group in 2011 from the previous owner who had bought it for preservation about 20 years previously from Wolverton Works. Built originally for the Railway Operating Department (ROD) during World War One for use with their standard 2-8-0 based on the GCR Robinson 8K class. Later passed to the LMS who fitted it with LNWR type brake gear and later converted it to a sludge carrier. It will be rebuilt with a 3080 gallon shaped tank to run with the new build GCR class 2 (LNER class D7) 4-4-0 that is being planned at present. It is highly likely that this tender was never fitted with a water scoop.
Restoration has started with the removal of the tank for scrap. |

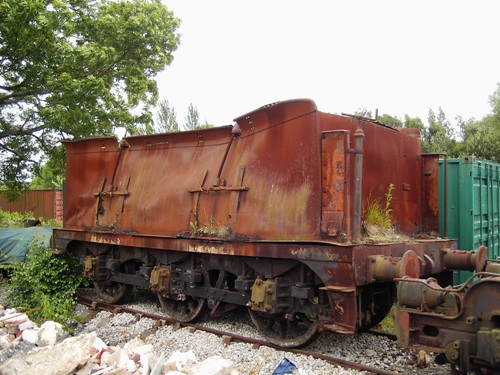

| Main Photo Taken By |
GCR 567 Project |
| Date of Image |
18/05/2006 |
| Record Last Updated |
30/10/2026 |
