| Present Location |
Carnforth |
| Designed For |
LMS |
| Type & Original Water Capacity (gallons) |
Stanier 4000 gallon Mk 1 (riveted) |
| Original Coal Capacity (tons) |
9 |
| Chassis Type |
Stanier Standard Wheelbase 3 axle |
| Wheelbase |
7ft 6in + 7ft 6in |
| Gauge |
4ft 8 1/2in |
| Scoop Fitted |
No |
| Allocated To |
5690 (45690) LMS Jubilee class 4-6-0 |
| Present Number |
9331 |
| Owner |
The Jubilee Locomotive Co Ltd |
| Status |
Under Restoration / Overhaul |
| Locomotives Used with this Tender |
June 1964 Arrived at Woodham Bros, Barry with 45690 LMS Jubilee class 4-6-0vvv vvvMarch 1972 Left Woodham Bros, Barry with 45690 LMS Jubilee 4-6-0vvv vvv March 1972 - April 2018 Believed to have only been used with 45690 LMS Jubilee class 4-6-0vvv vvv April 2018-June 2019 Spare (45690 ran with tender 10144 Stanier 4000 gallon Mk 2)vvv vvv June 2019 - to date 45690 LMS Jubilee class 4-6-0 |
| Additional Notes |
Original tank is of riveted construction. The chassis had a full overhaul in 2018/2019 and a new tender tank had been built that is being fitted during the overhaul starting in mid/late 2024.. It is not known if this new tank is a welded tank with dummy rivets or a fully riveted tank. The last known tender allocated to 45690 was a Stanier 4000 gallon Mk 1 (riveted) number 9139. It is not known if the current tender has been positively identified as 9331 or whether 9331 was just a numberplate that was available during restoration. |

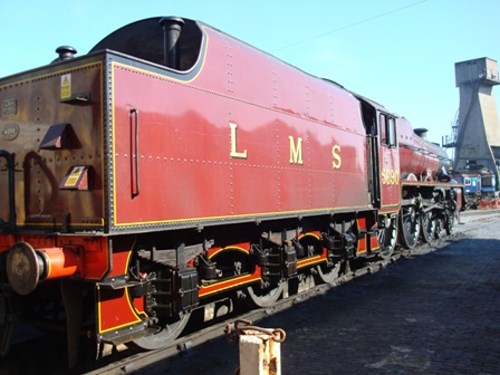

| Main Photo Taken By |
Chris Weeks |
| Date of Image |
26/07/2008 |
| Record Last Updated |
14/07/2024 |
