| Present Location |
Darlington Locomotive Works |
| Designed For |
LNER |
| Type & Original Water Capacity (gallons) |
5000 gallon High Sided Non Corridor Type |
| Original Coal Capacity (tons) |
9 |
| Chassis Build Year |
2007 |
| Chassis Type |
Gresley 4 axle |
| Wheelbase |
5ft 3in + 5ft 6in + 5ft 3in |
| Gauge |
4ft 8½in |
| Tank Fitted Date |
2008 |
| Current Water Capacity (gallons) |
6200 |
| Current Coal Capacity (tons) |
7.5 |
| Scoop Fitted |
No |
| Allocated To |
60163 LNER A1 class 4-6-2 |
| First Number |
783 |
| Present Number |
783 |
| Owner |
A1 Steam Locomotive Trust |
| Status |
Operational |
| Additional Notes |
New build tender. The original coal and water capacity refer to the capacity of the original LNER design. This tender was actually constructed with 6200 gallon water and 7.5 ton coal capacity. Similarly the original design was fitted with a scoop but this was never fitted to this tender |

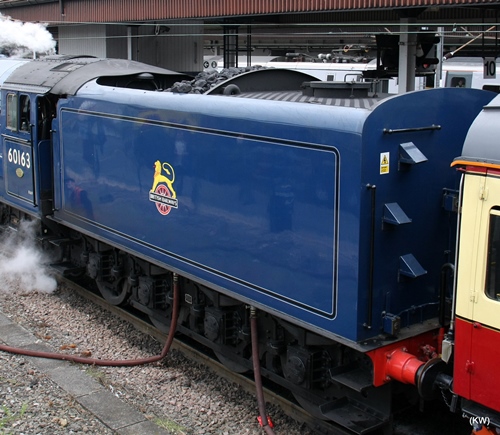

| Main Photo Taken By |
Ken Woods |
| Date of Image |
12/06/2013 |
| Record Last Updated |
10/04/2026 |
