| Present Location |
Swanage |
| Designed For |
SR |
| Type & Original Water Capacity (gallons) |
Bulleid 5500 gallon |
| Original Coal Capacity (tons) |
5 |
| Chassis Build Year |
1994 |
| Chassis Type |
Bulleid Standard Frame 3 axle |
| Wheelbase |
6ft 6in + 6ft 6in |
| Gauge |
4ft 8½in |
| Tank Type |
Bulleid Merchant Navy |
| Tank Fitted Date |
2017 |
| Current Water Capacity (gallons) |
5500 |
| Current Coal Capacity (tons) |
5 |
| Scoop Fitted |
Never Fitted |
| Allocated To |
34028 SR Rebuilt West Country class 4-6-2 |
| Present Number |
000 |
| Owner |
Southern Locomotives Ltd |
| Status |
Operational |
| Locomotives Used with this Tender |
1994-2003 34072 SR Battle of Britain class 4-6-2
2003- to date 34028 SR Rebuilt West Country class 4-6-2 |
| Additional Notes |

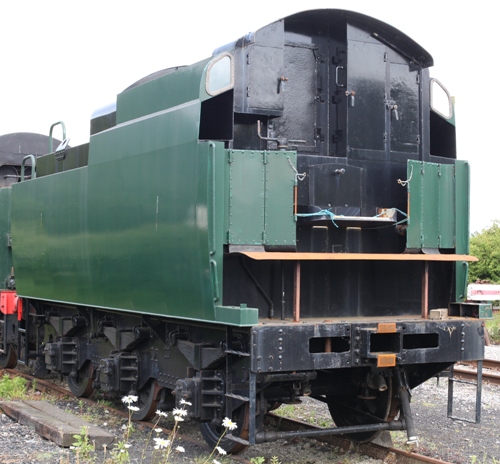

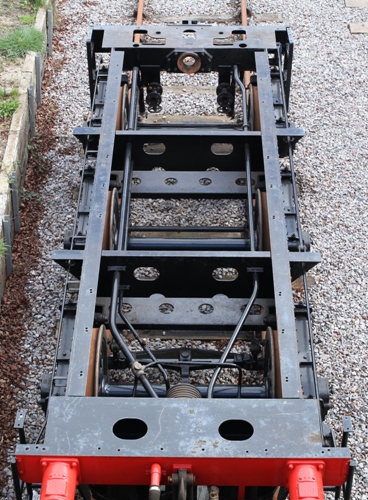

Chassis built By Riley & Son, Bury. Originally fitted in 1994 with an original 5000 gallon tank from tender 3119. This tank was removed and sold for scrap in December 2015. The chassis was then overhauled and a new 5500 gallon tank, which was built by Adam Dalgleish of Stockton on Tees, was fitted. In 2025 additional work was carried out to fit the tender with air braking for mainline running. The air tanks are fitted where the vacuum tanks were previously but are much taller resulting in a difference appearance of the tender behind the coal space compared to the original design. The number 000 is that allocated to it by Southern Locomotives Ltd. |

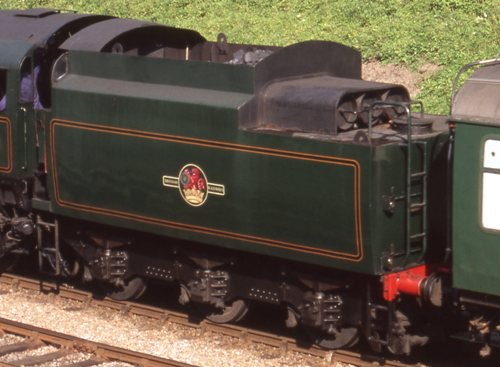

| Main Photo Taken By |
Justin Edwards |
| Date of Image |
09/06/2019 |
| Record Last Updated |
22/05/2026 |
