| Present Location |
Glouc Warks |
| Designed For |
SR |
| Type & Original Water Capacity (gallons) |
Bulleid 6000 gallon |
| Original Coal Capacity (tons) |
5 |
| Chassis Type |
Bulleid Long Wheelbase 3 axle |
| Wheelbase |
7ft 4in + 7ft 0in |
| Gauge |
4ft 8½in |
| Current Water Capacity (gallons) |
5500 |
| Scoop Fitted |
Never Fitted |
| Allocated To |
35006 SR Rebuilt Merchant Navy 4-6-2 |
| Present Number |
Unnumbered |
| Owner |
35006 Locomotive Society |
| Status |
Awaiting Restoration / Overhaul |
| Additional Notes |

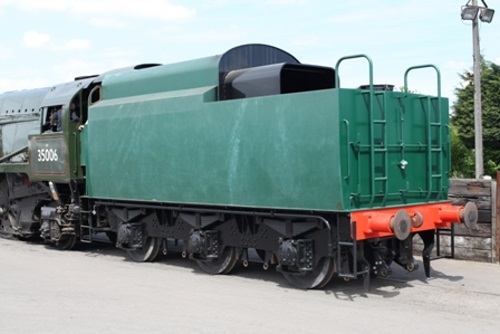

New build chassis and tank. The chassis is fitted with roller bearing axle boxes and wheelsets from a class 40 diesel bogie. The coal bunker and fire iron tunnels have been lengthened from 9'6' to 12' and there is no well tank.The current water capacity is an estimate |
| Main Photo Taken By |
Justin Edwards |
| Date of Image |
27/05/2013 |
| Record Last Updated |
07/06/2026 |
