| Present Location |
Carnforth |
| Designed For |
SR |
| Type & Original Water Capacity (gallons) |
Bulleid 6000 gallon |
| Original Coal Capacity (tons) |
5 |
| Chassis Build Year |
1948 |
| Chassis Type |
Bulleid Long Wheelbase 3 axle |
| Wheelbase |
7ft 4in + 7ft 0in |
| Gauge |
4ft 8½ine |
| Scoop Fitted |
Unspecified |
| Allocated To |
35018 SR Rebuilt Merchant Navy class 4-6-2 |
| Present Number |
3343 |
| Status |
Operational |
| Locomotives Used with this Tender |
December 1964 Arrived at Woodham Bros, Barry attached to 35018 SR Merchant Navy class 4-6-2
March 1978 - August 1987 34105 SR West Country class 4-6-2
August 1987 - unknown date (probably Autumn 1987) Under repair (34105 ran with tender 3339)
Unknown date (probably Autumn 1987) - at least April 1990 (but possibly up to August 1991) 34105 SR West Country class 4-6-2
After April 1990 but by August 1991 35018 SR Merchant Navy class 4-6-2. Has remained with 35018 ever since then |
| Additional Notes |
Built with a 6000 gallon tank. New tank by BR in 1962 to the same style as the Bulleid 5250 gallon tank but retaining a capacity of 6000 gallons . It is not known if tank has been replaced since preservation. The coal space has been extended backwards by 5'6' with consequent displacement of the brake reservoirs further back as well. It is not known how much this has increased coal capacity and whether water capacity has been changed as well. This change happened during its overhaul to run with 35018. |

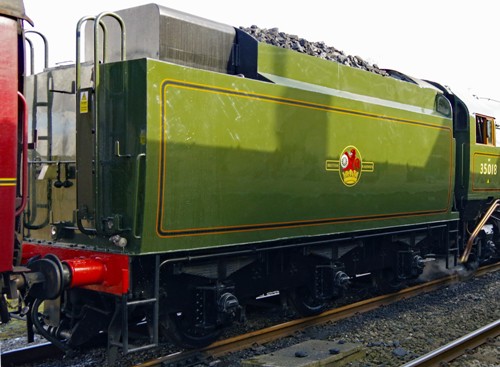

| Main Photo Taken By |
Paul Berry |
| Date of Image |
07/03/2018 |
| Record Last Updated |
10/02/2026 |
