| Present Location |
Severn Valley |
| Designed For |
SR |
| Type & Original Water Capacity (gallons) |
Bulleid 5500 gallon |
| Original Coal Capacity (tons) |
5 |
| Chassis Type |
Bulleid Standard Frame 3 axle |
| Gauge |
4ft 8½in |
| Scoop Fitted |
Never Fitted |
| Allocated To |
34027 SR Rebuilt West Country class 4-6-2 |
| Present Number |
Un numbered |
| Owner |
Taw Valley Ltd |
| Status |
Under Restoration / Overhaul |
| Locomotives Used with this Tender |
1983-circa Spring 1989 34027 SR Rebuilt West Country class 4-6-2
Circa Spring 1989-Early April 1990 Under repair. 34027 SR Rebuilt West Country class 4-6-2 ran with Bulleid 5100 gallon tender no.3122
Early April 1990-Present date 34027 SR Rebuilt West Country class 4-6-2 |
| Additional Notes |

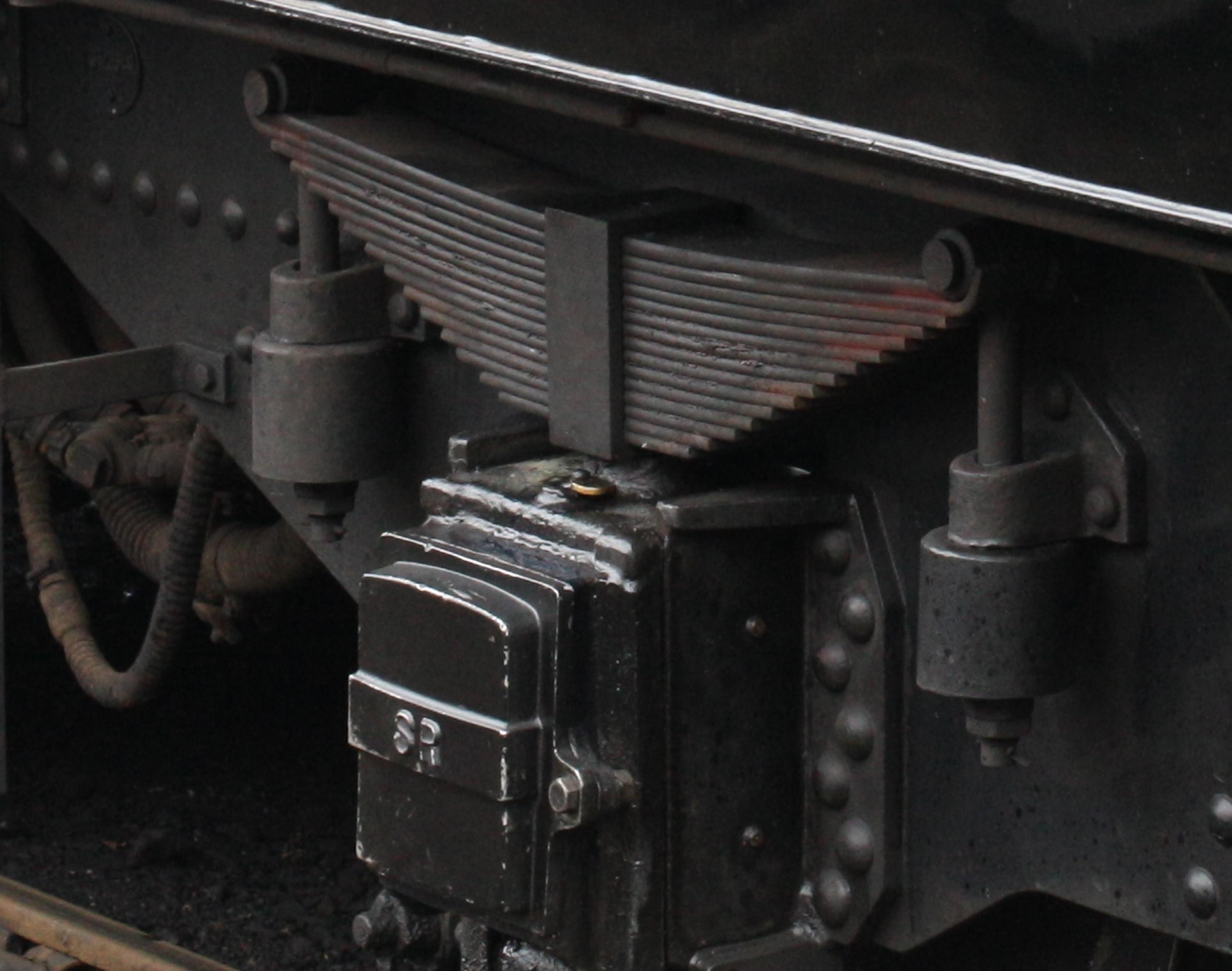

This is a new build tender completed in 1983 to the Bulleid 5500 gallon pattern. The tank does not have raves fitted. The wheels, axleboxes and springs were from an LNER tender. When built it was fitted with spoked wheels but these were replaced with disc wheels on the original axles circa 1990. At the same time the coal bunker was extended to increase coal capacity and the tender ran in this condition for many years. During the current overhaul started in 2024 the coal bunker is being altered back to the original size for a Bulleid 5500 gallon tender. |
| Main Photo Taken By |
Justin Edwards |
| Date of Image |
20/09/2014 |
| Record Last Updated |
12/03/2026 |
