| Present Location |
West Somerset |
| Designed For |
GWR |
| Type & Original Water Capacity (gallons) |
Churchward 3500 gallon |
| Original Coal Capacity (tons) |
7 |
| Chassis Type |
Churchward 3 axle |
| Wheelbase |
7ft 6in + 7ft 6in |
| Gauge |
4ft 8 1/2in |
| Current Water Capacity (gallons) |
3500 |
| Current Coal Capacity (tons) |
7 |
| Scoop Fitted |
Yes |
| Allocated To |
7812 GWR Manor class 4-6-0 |
| First Number |
2334 |
| Present Number |
2334 |
| Owner |
Erlestoke Manor Fund |
| Status |
Operational |
| Locomotives Used with this Tender |
2002-August 2006 7812 GWR Manor class 4-6-0 vvv vvv August 2006-September 2006 7802 GWR Manor class 4-6-0 vvv vvv September 2006-Autumn 2009 7812 GWR Manor class 4-6-0 vvv vvv Autumn 2009- May 2010 Spare, under repair (7812 ran with tender 2347 GWR Churchward 3500 gallon) vvv vvv May 2010- 2017 7812 GWR Manor class 4-6-0 vvv vvv 2017-Summer 2019 7802 GWR Manor class 4-6-0vvv vvvSummer 2019 to circa early 2023 Spare awaiting repairsvvv vvvcirca early 2023 - to date 7812 GWR Manor class 4-6-0 |
| Additional Notes |
New build tank and frames completed by 2002/3 incorporating some original fittings. This number was originally used by the GWR on a 3500 gallon Churchward tender built in 1921. |

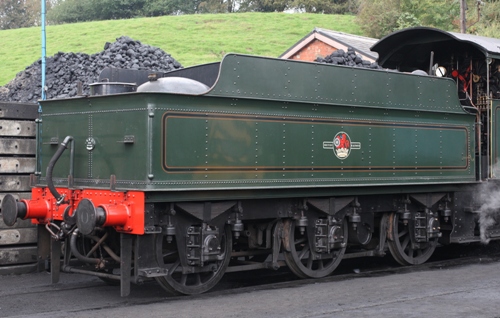

| Main Photo Taken By |
Justin Edwards |
| Date of Image |
20/09/2014 |
| Record Last Updated |
16/05/2023 |
