| Present Location |
NRM York |
| Designed For |
LNER |
| Type & Original Water Capacity (gallons) |
5000 gallon 1928 Corridor Type |
| Original Coal Capacity (tons) |
9 |
| Chassis Build Year |
1928 |
| Chassis Type |
Gresley 4 axle |
| Wheelbase |
5ft 3in + 5ft 6in + 5ft 3in |
| Gauge |
4ft 8 1/2in |
| Tank Fitted Date |
1983 |
| Scoop Fitted |
Unspecified |
| Allocated To |
502 60103 LNER A3 class 4-6-2 |
| First Number |
5325 |
| Present Number |
5325 |
| Owner |
National Railway Museum |
| Status |
Operational |
| Additional Notes |
New tank incorporates fittings such as hand rails, lids, corridor connections etc. from the original tank. The coal and water capacity of the new tank is thought to be unchanged but confirmation needed. The internal water scoop pipe has been removed which would increase capacity by approximately 75 gallons. |

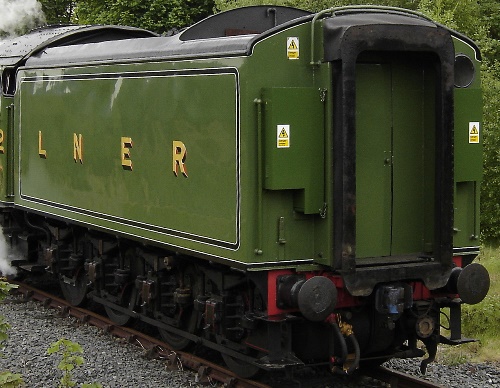

| Main Photo Taken By |
Ken Woods |
| Date of Image |
26/05/2005 |
| Record Last Updated |
09/03/2026 |
