| Present Location |
Swindon Museum |
| Designed For |
GWR |
| Type & Original Water Capacity (gallons) |
Churchward 3500 gallon |
| Original Coal Capacity (tons) |
7 |
| Year Entered Service |
1925 |
| Chassis Type |
Churchward 3 axle |
| Wheelbase |
7ft 6in + 7ft 6in |
| Gauge |
4ft 8 1/2in |
| Current Water Capacity (gallons) |
3500 |
| Current Coal Capacity (tons) |
7 |
| Scoop Fitted |
Yes |
| Allocated To |
2818 GWR 28XX 2-8-0 |
| First Number |
2376 |
| Present Number |
2376 |
| Owner |
Swindon Borough Council |
| Status |
Static Exhibit |
| Additional Notes |

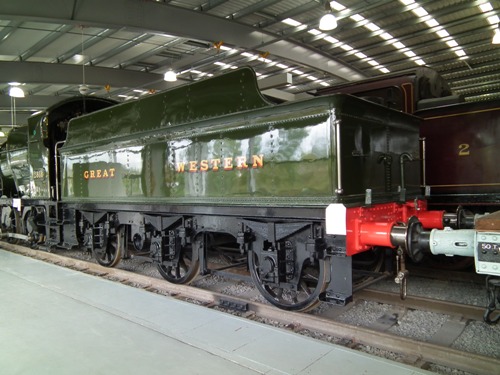

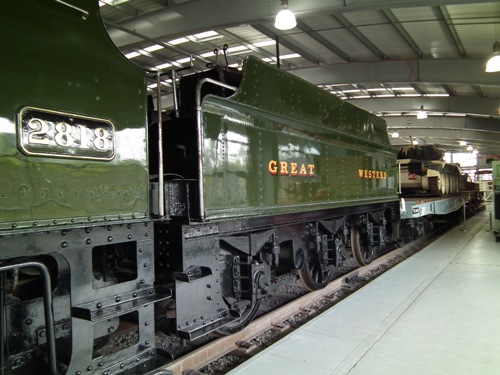

Number has been confirmed from parts stamped on tender. Though the tank has not been replaced since preservation this is not the original tank. This was one of a small batch of tenders to Lot A112 built with what are usually described as Intermediate Tanks. These had higher sides and full length side fenders. The tank though was swapped or replaced during GWR/BR service (a relatively common practice at Swindon Works) with the tank now fitted.The tender was restored at Eastleigh Works in 1966 and no significant work has taken place since. |
| Main Photo Taken By |
Mike Haddon |
| Date of Image |
11/10/2013 |
| Record Last Updated |
05/08/2021 |
