| Present Location |
Embsay |
| Designed For |
LYR |
| Type & Original Water Capacity (gallons) |
Aspinall 1800 gallon |
| Original Coal Capacity (tons) |
3 |
| Chassis Build Year |
1893 |
| Chassis Type |
Aspinall 3 axle |
| Wheelbase |
5ft 3in + 5ft 3in |
| Gauge |
4ft 8 1/2in |
| Tank Fitted Date |
c1975/76 |
| Current Water Capacity (gallons) |
1800 |
| Current Coal Capacity (tons) |
3 |
| Scoop Fitted |
No |
| Allocated To |
1300 (52322) LYR 27 class 0-6-0 |
| First Number |
1195 |
| Present Number |
1195 |
| Status |
Operational |
| Additional Notes |
Original tank was flush riveted, the new tank is of welded construction. Some fittings including handrails, knobs, water controls and numberplate were transferred from original tank. Loco and tender are normally based at the East Lancashire Railway but are occasionally hired out to other lines. |

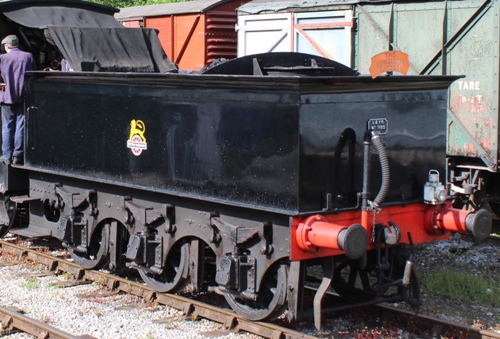

| Main Photo Taken By |
Mike Haddon |
| Date of Image |
15/06/2019 |
| Record Last Updated |
04/09/2023 |
